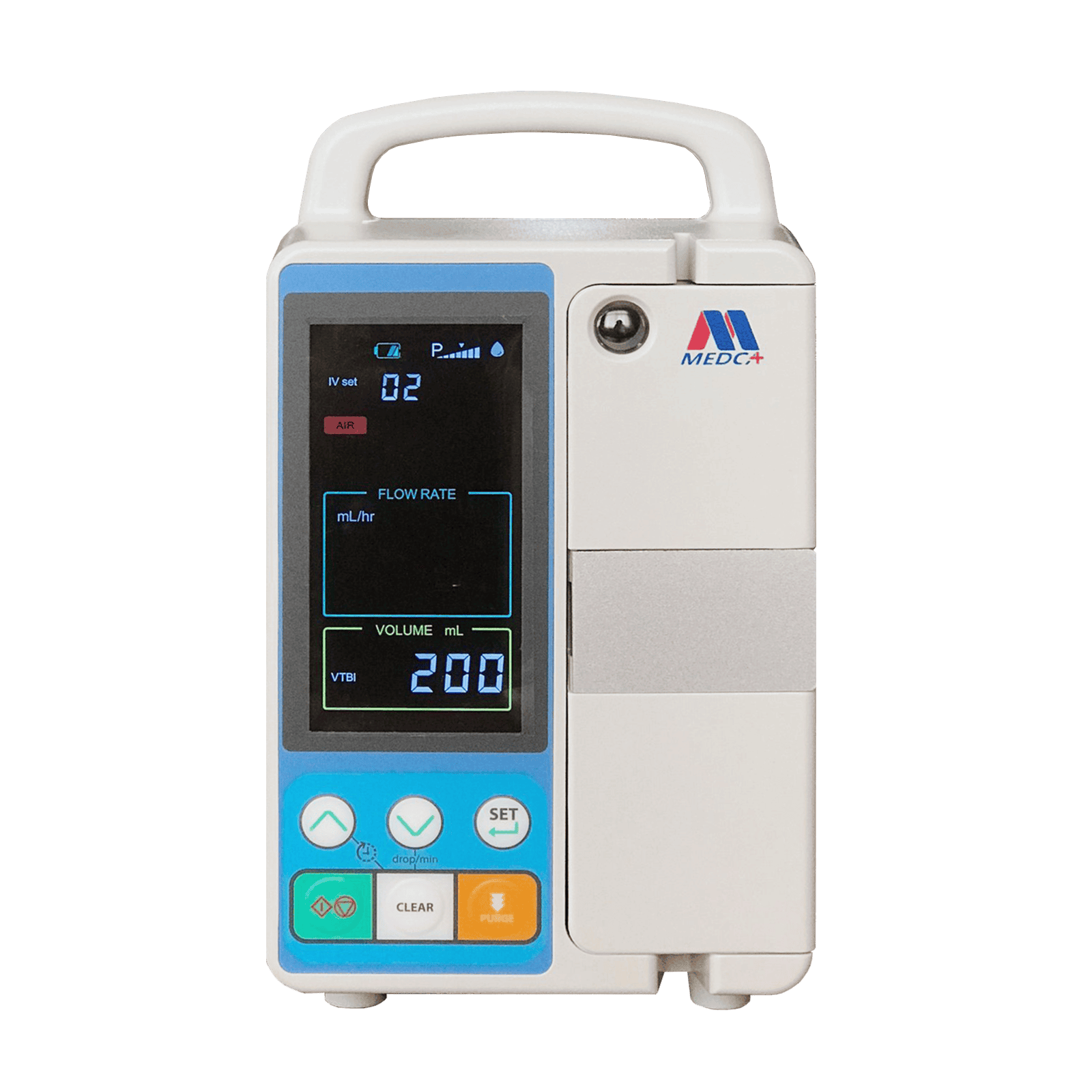

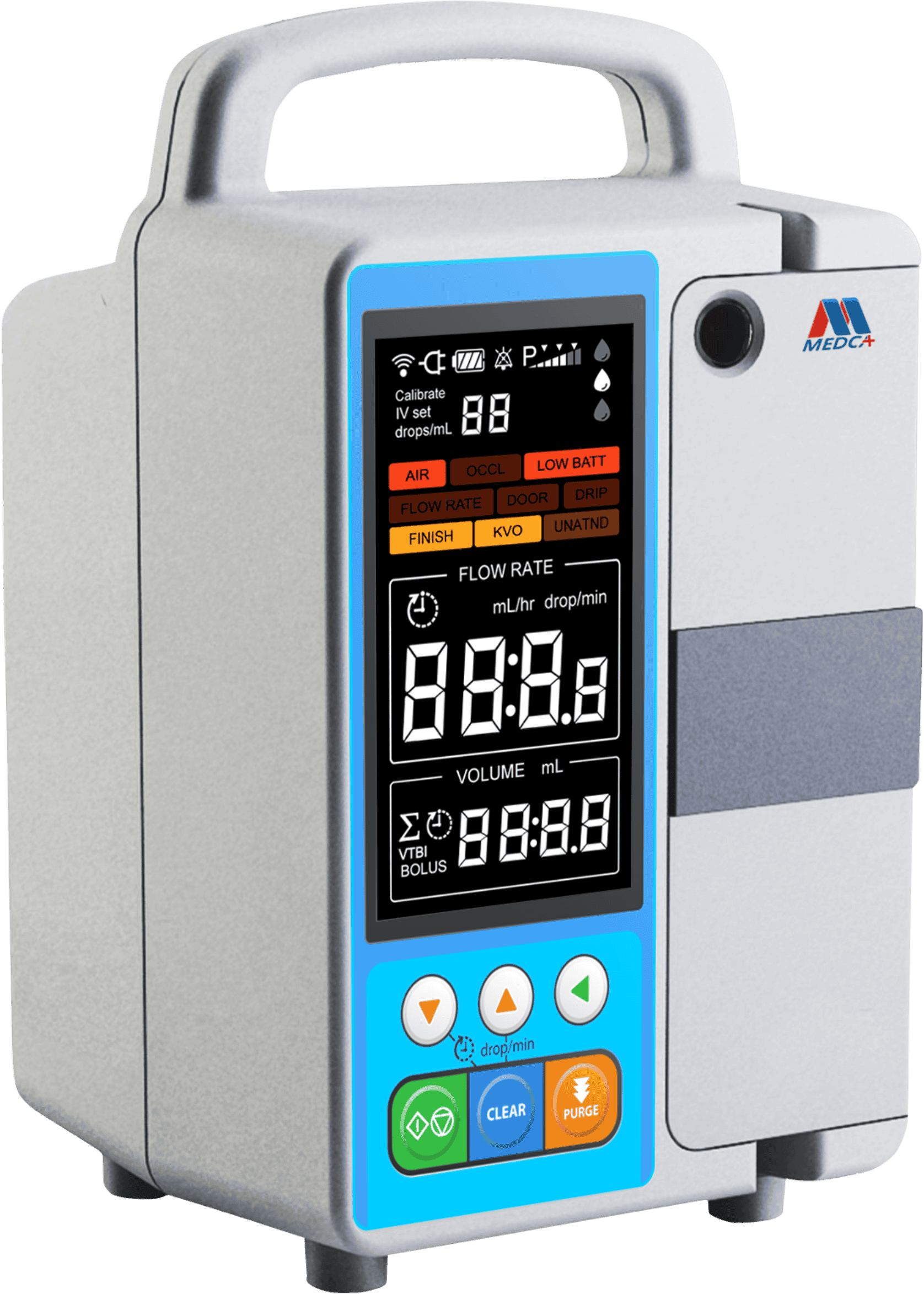

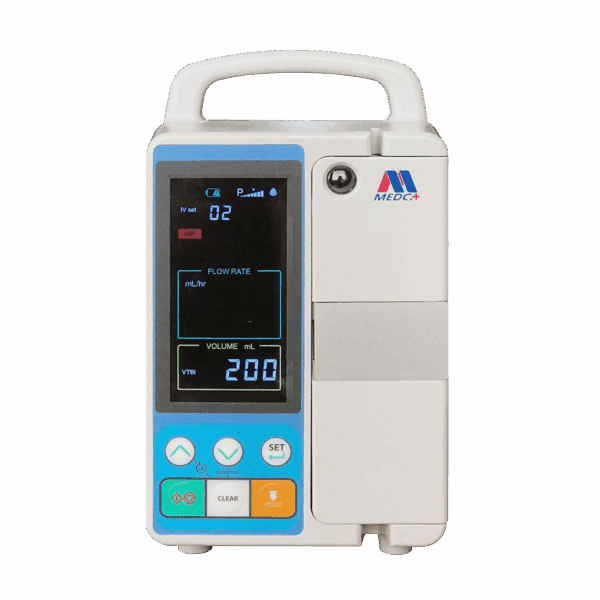

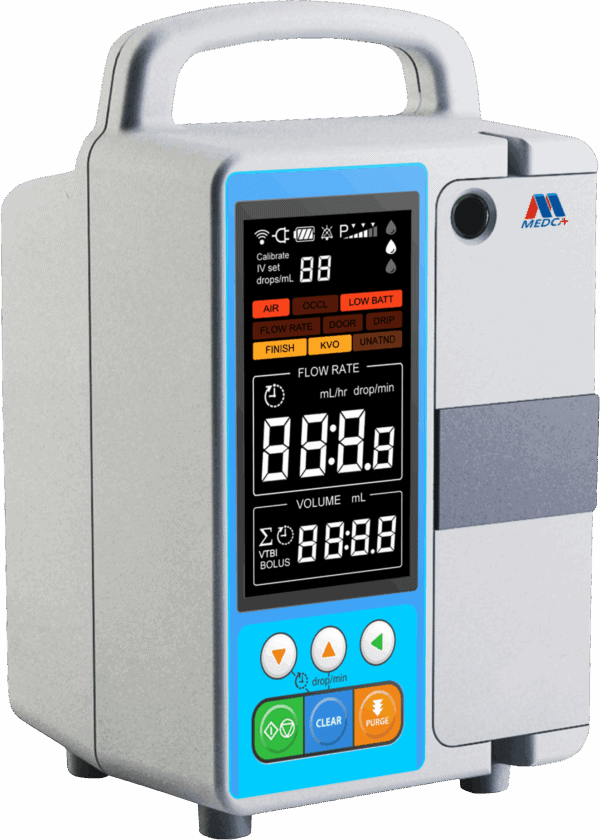

Infusion Pump Generic 01 (MVP-01)
The Infusion Pump Generic 01 is a medical device designed to deliver fluids, medications, or nutrients directly into a patient’s body in a precise and controlled manner through intravenous infusion. Equipped with advanced flow regulation technology, it ensures accurate dosage tailored to patient needs. Featuring a digital display, safety alarm system, and user-friendly operation, the Infusion Pump Generic 01 is ideal for use in hospitals and clinics to enhance patient safety and treatment efficiency
Product Specifications
Pump Mechanism
Peristaltic Curved
Purge, Bolus
100 – 1500 ml/h (in 1ml/h increments), Purge when the tube stops, bolus when the tube starts
Accuracy
±3%
VTBI
1-9999 ml
KVO Rate
0.1 – 5 ml/h (in 0.1 ml/h increments)
Battery
9.6±1.6 V, rechargeable
Operating Temperature
10 – 40°C
Atmospheric Pressure
700 – 1060 hPa
Weight
2.5 kg
Flow Rate
0.1 – 1500 ml/h (in increments of 0.1 ml/h)
Bolus Volume
1 – 20 ml (in 1 ml increments)
Built-in thermostat
30 – 45°C, adjustable
Infusion mode
ml/h, drops/min, time-based
Power Supply, AC
110/230 V (selectable), 50-60 Hz, 20 VA
Battery Life
5 hours at 30 ml/h
Relative Humidity
30 – 75%
Dimensions
174 (L) x 126 (W) x 215 (H) mm
Safety Classification
Class I, Type CF
